Dear Friends and Customers,



The new board arrived and I'm testing it now.

https://youtu.be/ljsOEcQIxbo



'◆ SD MIDI ][+' 카테고리의 다른 글

SD MIDI ][+ card and user's manual  (0) 2022.06.03
New MIDI ][+ is under testing  (0) 2022.05.24
Revised SD MIDI ][+ card coming soon  (0) 2022.05.13
SD MIDI ][+ Player Ver. 0.2K  (0) 2021.07.10
SD MIDI][+ Player V0.2J  (0) 2021.07.06
Patch SD MIDI][+ card for SD MIDI][ + Player  (0) 2021.07.06
Posted by 이안김

댓글을 달아 주세요

Order direct for better price

NOTICE / 2022. 5. 14. 21:31

My products are on listed eBay But, they take too much fees...

https://www.ebay.com/sch/ksd09/m.html

So, please email me for direct purchase thru the Paypal system with discounted good price.

(Paypal customer care is still exist&covered for buyers)







Thanks

Ian Kim




'NOTICE' 카테고리의 다른 글

7% discount coupon  (0) 2022.06.23
Order direct for better price  (0) 2022.05.14
HAPPY NEW YEAR  (0) 2022.01.05
Item price will be increase  (0) 2021.05.31
Mockingboard 4c+ shipped for Pre-orders  (2) 2021.05.01
Mockingboard 4c is preparing for pre-order  (1) 2020.01.14
Posted by 이안김

댓글을 달아 주세요

Dear friends and customers,

I think, I really like music on the computer. Such as FM sound and MIDI sound are good for my APPLE II life and like to think about new/better sound cards for my APPLE II.
In fact, I'm not good at the piano... my son plays better... but, still dream of playing the piano with my own song...
But I just I have some talent for making hardware but not good for playing musical instruments...  ;(
If Someone makes a good melody it would be always welcome to the world and then could play the melody on my APPLE II.

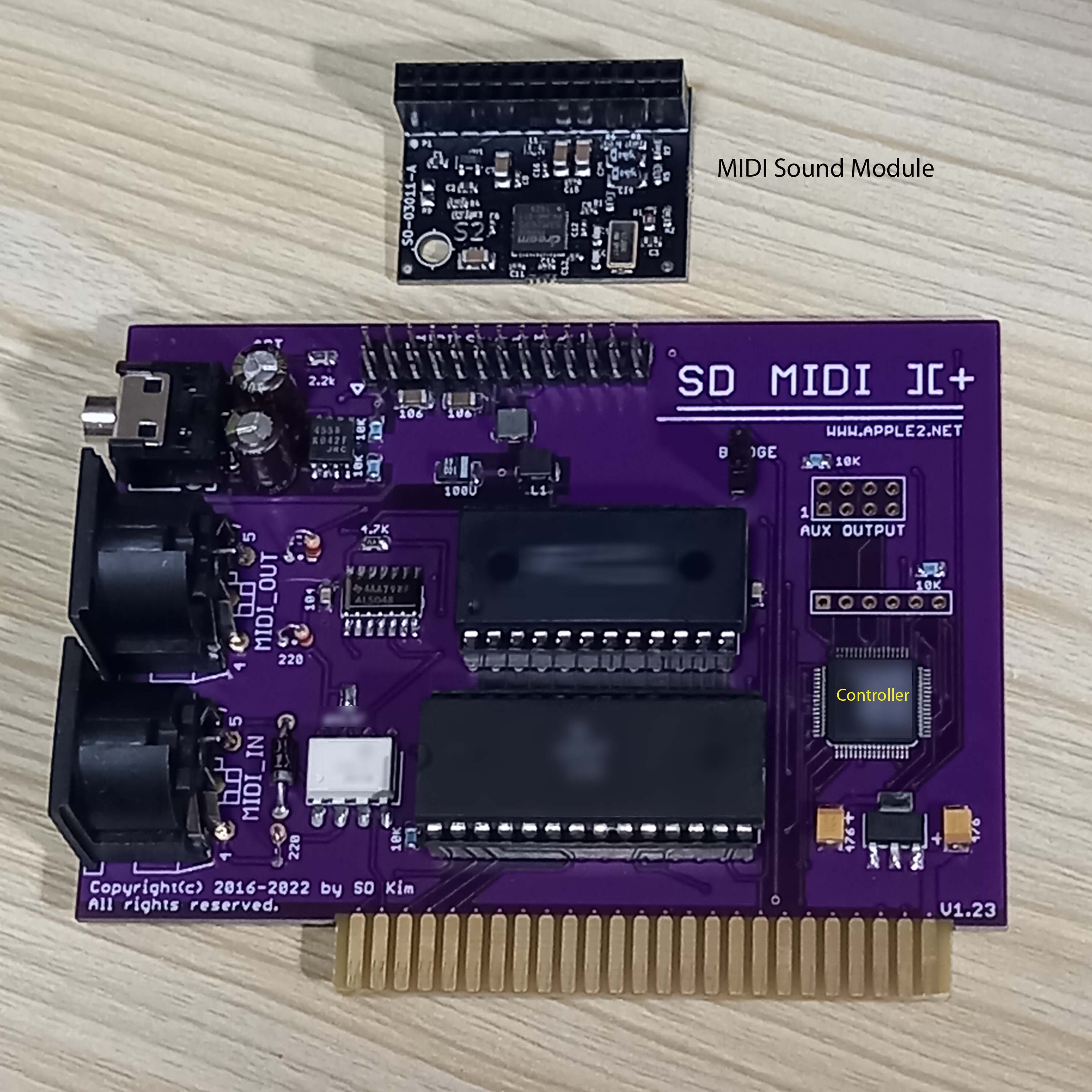

The SD MIDI II+ card was discontinued for so long time and need to make another batch for my friends and customers.

In this version of the SD MIDI ][+ would be just a little revised.

Before, I considered it a lot but, I'm not sure if someone would like my idea or just let it be a new trial for fun so just revise the version.

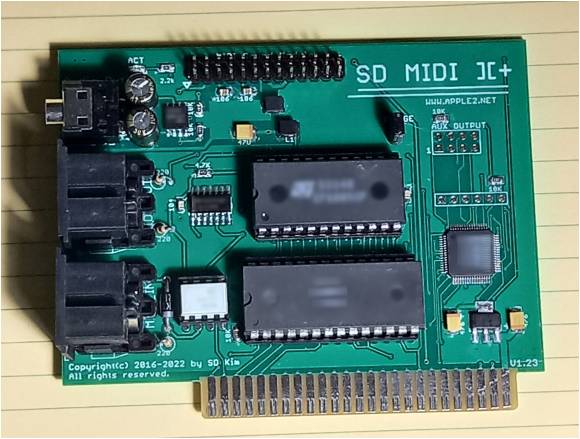

I received the prototype PCB and tested it. works as I expected.





Now, I'm thinking about which color would be good for this card...

Anyway, Please wait 2 more weeks then I could start to make the commercial cards.

Thanks for waiting.
Ian





'◆ SD MIDI ][+' 카테고리의 다른 글

SD MIDI ][+ card and user's manual  (0) 2022.06.03
New MIDI ][+ is under testing  (0) 2022.05.24
Revised SD MIDI ][+ card coming soon  (0) 2022.05.13
SD MIDI ][+ Player Ver. 0.2K  (0) 2021.07.10
SD MIDI][+ Player V0.2J  (0) 2021.07.06
Patch SD MIDI][+ card for SD MIDI][ + Player  (0) 2021.07.06
Posted by 이안김

댓글을 달아 주세요

VGM Player V1.25B

◆ SD Music card / 2022. 5. 12. 23:36

Dear friends and customers,

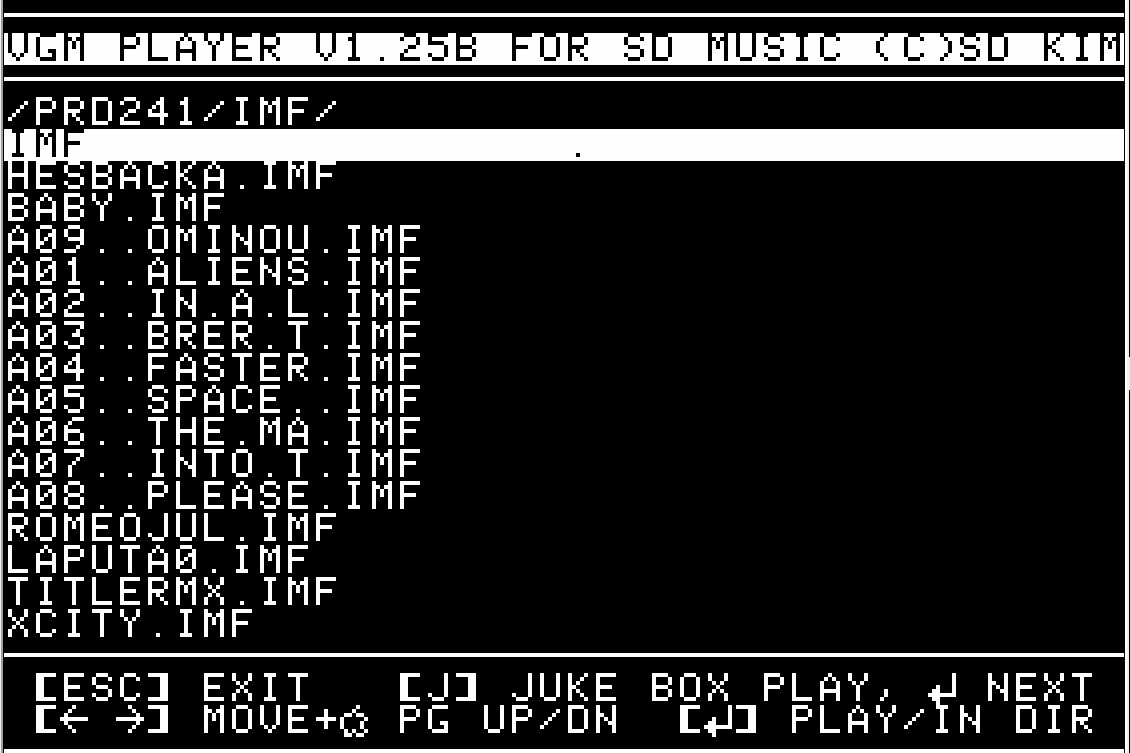

VGM Player is a Music Player for SD Music/Deluxe card.

In the beginning, It only supported VGM music files but, now supports IMF and DRO  music files.

So, Now You can play OPL2 DOSBOX DRO V1.0 music file.

Enjoy it on your SD Music deluxe card and thanks again your purchasing it.



New version was uploaded into the same link of VGM Player.(please check your email/message when you purchased the card, I sent a link for VGM Player)



Thanks a lot

Ian Kim









'◆ SD Music card' 카테고리의 다른 글

VGM Player V1.25B  (0) 2022.05.12
Playing IMF music files on VGMPlayer V1.24  (0) 2022.05.09
PT3 Player  (0) 2022.04.22
Programmer's guide for SD Music Deluxe  (0) 2022.04.21
Lemmings game on APPLE //e  (0) 2022.04.21
SD Music Deluxe firmware V1.0D  (0) 2022.04.14
Posted by 이안김

댓글을 달아 주세요





SDBIOS.ROM
0.11MB

Dear friends and customers,

Please update your card firmware to V2.76B.

It has been internally patched as under.

But, If you don't use an LCD dial, you don't have differences.



What was updated

Patched on Making new Blank DISK image creating (Name selection was limited but now up to 99 disks)

Simplified internal routine for less firmware size. (It would help for further reserved function)



How to update

1) Copy the file on your SD memory card in Root location.

2) Please update by '*' on the Boot Menu.

3) After finished, Please check if the firmware version changed on the Boot menu.

4) Reboot your APPLE II and use it.





** Notice for firmware V2.76x **

From this version, the FDD reading method was changed and some of *.NIB files may read at a slow speed.

In this case, It needs to convert the DISK SKEW of the NIB image file.

To solve this slow speed issue, Simply copy the image to self by COPY ][ PLUS.

It will help to read at a good speed.

If you having any other troubles, please let me know.







'◆ SD DISK II Emulator > Firmware' 카테고리의 다른 글

SD DISK][ Plus firmware V2.76B  (0) 2022.05.10
SD DISK][ Plus Firmware V2.76A  (0) 2022.05.02
SD DISK ][ Plus Firmware V2.74p  (0) 2022.03.19
New firmware for SD DISK][ emulator (V2.59V)  (0) 2018.02.26
New ROM BIOS V1.82B  (0) 2015.09.03
SD DISK][ Firmware V2.58D  (0) 2015.02.11
Posted by 이안김

댓글을 달아 주세요

Dear Friends and Customers,

The VGMPlayer could play IMF Music files.

I'm working to support IMF music files on the VGMPlayer.

It's almost done and playing IMF songs now.

Please download the VGM Player again and You can have an updated version.
(You can find the location my email, I sent the information when you purchase the card)





What is IMF file and useful tools...

https://k1n9duk3.shikadi.net/imftools.html



IMF Tools - K1n9_Duk3 Reloaded

What is "IMF"? IMF stands for Id Software Music Format. The format was invented by Id Software in 1991 for Commander Keen 4-6 and was used in the later games Catacomb 3-D, Wolfenstein 3-D and Spear of Destiny. The same format was also used in some games by

k1n9duk3.shikadi.net

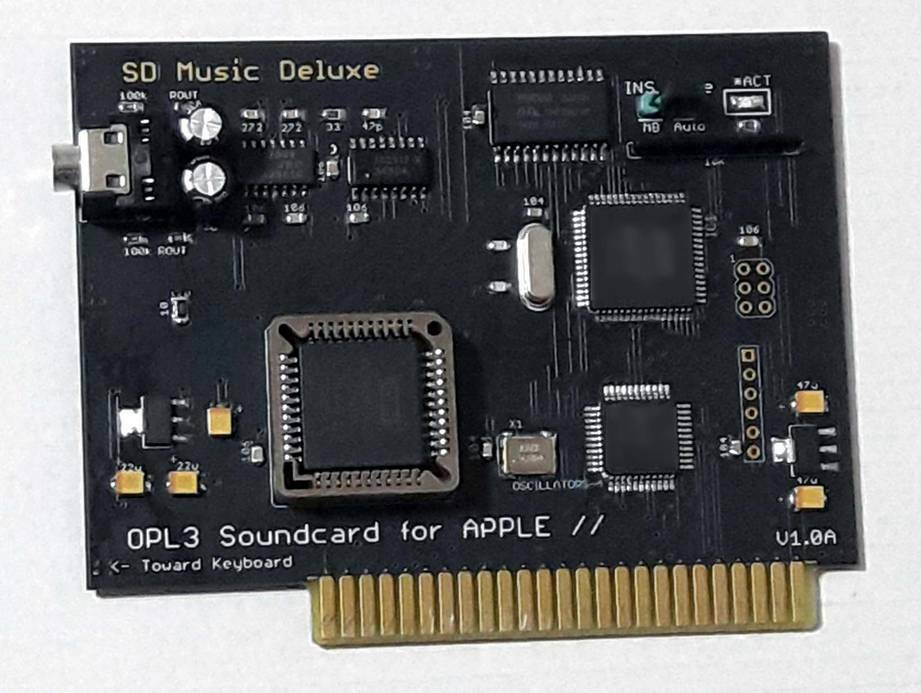

SD Music Deluxe card has an OPL3 sound chip and the IMF files are also possible to play on APPLE II.

Hence, I researched the IMF file type and could make it run on SD Music Deluxe.

I searched for some good file formats that could work on APPLE II without any heavy CPU load.

In my thought the Music playing in APPLE II wouldn't be a problem but, when I apply the VGM songs in APPLE II,

It won't fit for games on APPLE II. so other file types are needed.

I can make my own format but, it isn't a good idea cause I can't make good songs...

So need another format it could be made by some of the composers and if possible to convert to a specified music format, it would be a nice.

I considered it an easy one and I found DRO and IMF files. Some of the files are based on MIDI format and have instrument data in to and need more consideration for APPLE II.



DRO vs IMF...

DRO file can extract DOSBOX program and good for OPL2/OPL3

IMF file can extract some DOS games and only for OPL2(OPL3 can)

And IMF file was simper to DRO and I did for it.

VGM Player would be a good player for VGM and IMF music files.



Background MUSIC(Sound) player on APPLE II

There are Mockingboard programs that can play in the background.

I also considering making a similar program that plays IMF sound files.

it would be helpful for the user's program.

Users could insert their own sound effects while background music playing.

Hope to complete it soon.



Thanks

Ian Kim





** VGM Player updated to V1.24

In this version, It supports large IMF files and has no file size limitation.

And hidden reading applied so you can play IMF songs seamlessly.

Enjoy more OPL2 music on SD Music Deluxe card.



Thank you

Ian























'◆ SD Music card' 카테고리의 다른 글

VGM Player V1.25B  (0) 2022.05.12
Playing IMF music files on VGMPlayer V1.24  (0) 2022.05.09
PT3 Player  (0) 2022.04.22
Programmer's guide for SD Music Deluxe  (0) 2022.04.21
Lemmings game on APPLE //e  (0) 2022.04.21
SD Music Deluxe firmware V1.0D  (0) 2022.04.14
Posted by 이안김

댓글을 달아 주세요

Dear friends and customers,

Firmware for SD DISK][ Plus has been newly updated.



Now, Also working well on the Lemmings game program.



In this version, internal improvements have been made to better support the DISK COPY program.

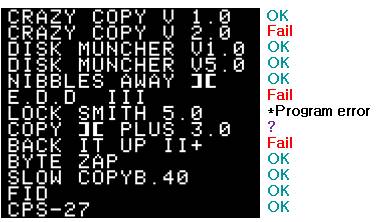

Below marked OK DISK COPY programs work well.

The above programs are disk-related utilities that are mainly used.

You can easily make a NIB file created after copying it, to archive or distribute it on the Internet.

However, the negative symptom was found

Some NIB images read very slowly.

it comes due to different virtual DISK spinning.



In this case,

Use a DISK Copy Program(such as 'COPY ][ PLUS 5.1' ) and copy the DISK to self.
In other words, Overwrite the Image by copy to DISK B --> DISK B



How to update firmware!
Put the this SDBIOS.ROM file in the root of the SD memory,
Then proceed with the firmware update on boot menu.

SDBIOS.ROM
0.11MB

Thanks

Ian Kim

'◆ SD DISK II Emulator > Firmware' 카테고리의 다른 글

SD DISK][ Plus firmware V2.76B  (0) 2022.05.10
SD DISK][ Plus Firmware V2.76A  (0) 2022.05.02
SD DISK ][ Plus Firmware V2.74p  (0) 2022.03.19
New firmware for SD DISK][ emulator (V2.59V)  (0) 2018.02.26
New ROM BIOS V1.82B  (0) 2015.09.03
SD DISK][ Firmware V2.58D  (0) 2015.02.11
Posted by 이안김

댓글을 달아 주세요
