Star Sprite card

◆ APMSX / 2019.04.26 12:46

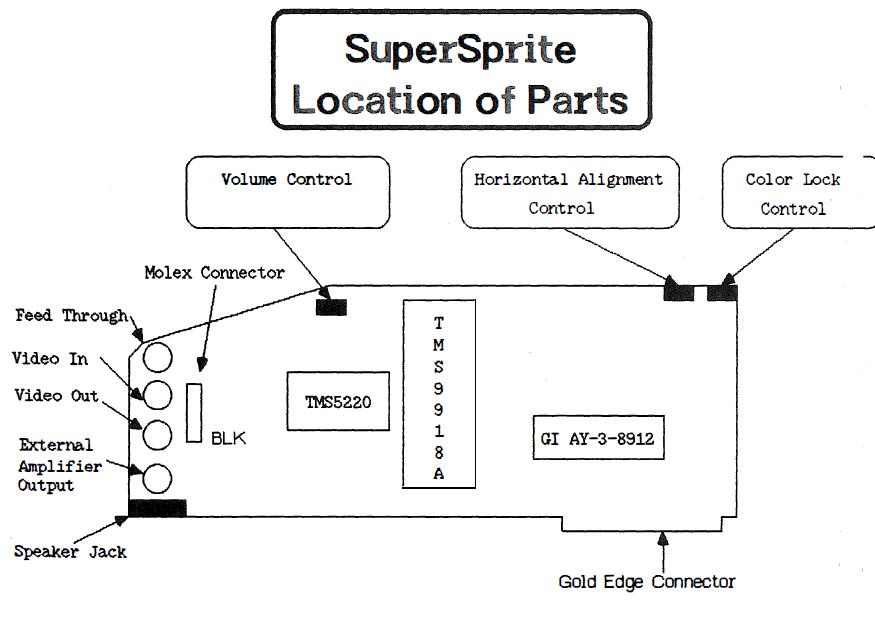

It was a very nice TMS9918 and AY3-8913 card for APPLE II.

It used TMS9918 and AY3 8912 for sound generation.

It has similar chip as the APMSX and if do match the I/O address, it also would work on APMSX.





Here are DISK images.

Really appreciated this images converting for share.



APMSX I/O address is following MSX I/O address hence, TMS9918 occupied at $Cn99 and $Cn99.

Sound chip sit on $CnA0 and $CnA1

I didn't try it yet but, I'm sure it could make it work on APMSX.

And Basic program looks nice, it can easily use TMS9918 and Sound by '&' command extension.

I will check how to modify it.



Thanks



StarSprite-SuperSprite-Programs.zip
152.3 kB



synetix-supersprite-owners-manual-cs.pdf
5.2 MB
