VGM Player V1.25B

◆ SD Music card / 2022. 5. 12. 23:36

Dear friends and customers,

VGM Player is a Music Player for SD Music/Deluxe card.

In the beginning, It only supported VGM music files but, now supports IMF and DRO  music files.

So, Now You can play OPL2 DOSBOX DRO V1.0 music file.

Enjoy it on your SD Music deluxe card and thanks again your purchasing it.



New version was uploaded into the same link of VGM Player.(please check your email/message when you purchased the card, I sent a link for VGM Player)



Thanks a lot

Ian Kim









'◆ SD Music card' 카테고리의 다른 글

Playing IMF music files on VGMPlayer V1.24  (0) 2022.05.09
PT3 Player  (0) 2022.04.22
Programmer's guide for SD Music Deluxe  (0) 2022.04.21
Lemmings game on APPLE //e  (0) 2022.04.21
SD Music Deluxe firmware V1.0D  (0) 2022.04.14
Posted by 이안김
, |

Dear Friends and Customers,

The VGMPlayer could play IMF Music files.

I'm working to support IMF music files on the VGMPlayer.

It's almost done and playing IMF songs now.

Please download the VGM Player again and You can have an updated version.
(You can find the location my email, I sent the information when you purchase the card)





What is IMF file and useful tools...

https://k1n9duk3.shikadi.net/imftools.html



IMF Tools - K1n9_Duk3 Reloaded

What is "IMF"? IMF stands for Id Software Music Format. The format was invented by Id Software in 1991 for Commander Keen 4-6 and was used in the later games Catacomb 3-D, Wolfenstein 3-D and Spear of Destiny. The same format was also used in some games by

k1n9duk3.shikadi.net



SD Music Deluxe card has an OPL3 sound chip and the IMF files are also possible to play on APPLE II.

Hence, I researched the IMF file type and could make it run on SD Music Deluxe.

I searched for some good file formats that could work on APPLE II without any heavy CPU load.

In my thought the Music playing in APPLE II wouldn't be a problem but, when I apply the VGM songs in APPLE II,

It won't fit for games on APPLE II. so other file types are needed.

I can make my own format but, it isn't a good idea cause I can't make good songs...

So need another format it could be made by some of the composers and if possible to convert to a specified music format, it would be a nice.

I considered it an easy one and I found DRO and IMF files. Some of the files are based on MIDI format and have instrument data in to and need more consideration for APPLE II.



DRO vs IMF...

DRO file can extract DOSBOX program and good for OPL2/OPL3

IMF file can extract some DOS games and only for OPL2(OPL3 can)

And IMF file was simper to DRO and I did for it.

VGM Player would be a good player for VGM and IMF music files.



Background MUSIC(Sound) player on APPLE II

There are Mockingboard programs that can play in the background.

I also considering making a similar program that plays IMF sound files.

it would be helpful for the user's program.

Users could insert their own sound effects while background music playing.

Hope to complete it soon.



Thanks

Ian Kim





** VGM Player updated to V1.24

In this version, It supports large IMF files and has no file size limitation.

And hidden reading applied so you can play IMF songs seamlessly.

Enjoy more OPL2 music on SD Music Deluxe card.



Thank you

Ian























'◆ SD Music card' 카테고리의 다른 글

VGM Player V1.25B  (0) 2022.05.12
PT3 Player  (0) 2022.04.22
Programmer's guide for SD Music Deluxe  (0) 2022.04.21
Lemmings game on APPLE //e  (0) 2022.04.21
SD Music Deluxe firmware V1.0D  (0) 2022.04.14
Posted by 이안김
, |

PT3 Player

◆ SD Music card / 2022. 4. 22. 11:06

Dear friends and customers,



PT3 Player for APPLE II (Mockingboard).

https://www.youtube.com/watch?v=bdAxNCj_s6I&ab_channel=deater78





This is a working PT3 Player on the SD Music Deluxe card.

I patch the original program.

Please download it and enjoy PT3 music on your SD Music Deluxe.

PT3PLAYER.NIB
0.23MB



Thanks a lot

Ian Kim









'◆ SD Music card' 카테고리의 다른 글

VGM Player V1.25B  (0) 2022.05.12
Playing IMF music files on VGMPlayer V1.24  (0) 2022.05.09
Programmer's guide for SD Music Deluxe  (0) 2022.04.21
Lemmings game on APPLE //e  (0) 2022.04.21
SD Music Deluxe firmware V1.0D  (0) 2022.04.14
Posted by 이안김
, |

Dear APPLE II soft developers,



Please refer to this guide to control SD Music deluxe as the Mockingboard.

It would help on your program.

Mockingboard issue on SD Music Deluxe card.pdf
0.20MB

If you have any questions, please let me know.



Regards;

Ian Kim







'◆ SD Music card' 카테고리의 다른 글

Playing IMF music files on VGMPlayer V1.24  (0) 2022.05.09
PT3 Player  (0) 2022.04.22
Lemmings game on APPLE //e  (0) 2022.04.21
SD Music Deluxe firmware V1.0D  (0) 2022.04.14
SD Music Deluxe (Mockingboad sound)  (0) 2020.09.17
Posted by 이안김
, |

Dear Friends and cumstomers,



The new game Lemming for APPLE //e was announced as under.

http://www.deater.net/weave/vmwprod/lemm/



Apple II "Lemmings" Proof of Concept



www.deater.net

I tested it on SD Music Deluxe and it had malfunctioned.

So, I dig it and finally can make it works.

Please download and enjoy it on your APPLE //e with SD Music Deluxe.

Lemmings.NIB
0.23MB

Thanks a lot.

Ian Kim

Posted by 이안김
, |

Dear friends and customers,



I'm glad to announce new firmware for the SD Music Deluxe card.

Please download and update your card.

It is only for the SD Music Deluxe card.

Version 1.0c ; For Better Mockingboard emulation.

Works fine on PETSCII Robots for Apple ][

Works fine on NOX ARECHAIST

And Some more..



----------------------------------------------------------------------------------------

How to update;



0) Power OFF your APPLE II

1) Your SD Music DLX card must be in SLOT #4

2) Remove Switch block(Firmware update mode) on SD Music DLX card.

3) Boot with SDMDV10C.NIB

4) Follow the Screen

5) Power OFF and Return the Switch block into SD Music DLX card (Default Right(Auto))

----------------------------------------------------------------------------------------

SDMDV10C.NIB
0.22MB

If you have any concerns, please let me know.



Thanks a lot

Ian Kim







Posted by 이안김
, |

Thanks Mr. Johnson Lam,



youtu.be/eq_tTo3qrsI

youtu.be/aU1P4eh-Y34

youtu.be/2-OCZf_lDAk



This is the SKY Fox Intro music.

Very similar as the Mockingboard isn't it?

(It just has a color issue on the capture device)

youtu.be/LuB8ghXvTRo



Posted by 이안김
, |

Dear friends and customers,

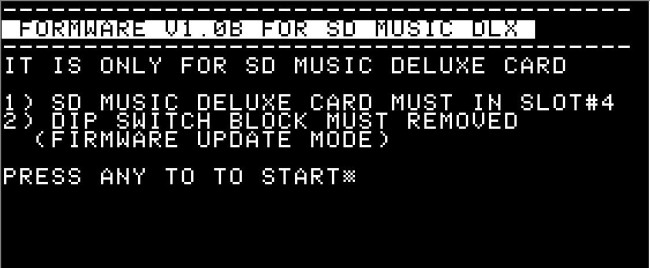

Please update your Music DLX card to this firmware V1.0b.

This version patched music instruments changing function.

FMUPDLX.nib
0.22MB

How to update



1) Pls OFF your APPLE II

2) Remove the Switch Block on DLX card (Firmware update mode)

(SD Music Deluxe card must in SLOT#4)

3) Boot the image file.

4) Follow the instruction.



It would take a few mins.

If success, it will make 'Ding Dong sound...' but, if failed, It will make 'Ding.... Ding...



5) If successfully updated, please return the switch block as before.

6) If has any error then Please try again to 1)

7) Close your APPLE II and enjoy it.





** Instrument change utility for SD Music DLX.

Please download this image file and try it.

You can assign each channel of mockingboard to a specific music instrument(Pls refer to the manual for instrument list).

Also, This utility disk has two example instrument data files for a sample.



This utility can do

(1) Assign music instrument to each channel of Mockingboard.

(2) Upload music instruments to SRAM

(3) Upload music instruments to EEPROM

Pls refer to the Source code for your programming.

SMDLXUTL.nib
0.22MB

If you have any questions, please let me know.



Thanks

Ian Kim



'◆ SD Music card' 카테고리의 다른 글

SD Music Deluxe firmware V1.0D  (0) 2022.04.14
SD Music Deluxe (Mockingboad sound)  (0) 2020.09.17
SD MUSIC DELUXE INSTRUMENT UTILITY  (0) 2020.07.03
New firmware for SD Music(Plus) card  (0) 2020.04.28
VGM Player V1.21  (0) 2020.04.26
Posted by 이안김
, |

Dear friends and customer,



With this utility, You can change a default mockingboard channel instrument to one of Bank instruments.

If you have any questions, please email me.



SMDLXUTL.nib
0.22MB

Regards;

Ian Kim





Posted by 이안김
, |

Dear customers and friends,

I'm glad to announce this good for all of SD Music card buyers.
New firmware for SD Music (plus) card was finished.



https://youtu.be/TmVWjNK-isw


What was changed?

1) New firmware support much better for Mockingboard emulation. now it supports all channels envelope

I spent many days and nights to make a good mockingbird emulation.

*Chorus channels are removed and it assigned to more noise channels. now it has 3 noise channels.



2) User firmware update support
The previous version doesn't have this capability but from now it supports end-user updates. hence end-user could update when new firmware announce.

3) VGMPlayer support

But unfortunately, I need your card, hence SD Music card owner needs to ship it for firmware updates.
After that, End-user firmware updates are activated.
Please email me (quick09 (a) gmail . com)



But,  worldwide covid19 is a big issue hence,  you may not easy to ship it to me and also my side having difficulty returning it to you.  please wait for good days for us.


if you have any concerns, please let me know.
Thanks
Ian Kim

Posted by 이안김
, |

VGM Player V1.21

◆ SD Music card / 2020. 4. 26. 20:55

Hi friends and customers,



VGM Player for APPLE II, It is version 1.21 now.

In this version, It supports sub-directory and easy file list moving with Page UP/Down.

Also for more fun, I added a Jukebox function. it is simple to play all of the music files in the present directory.

Please watch this.

SD Music Deluxe card planned a month later and this program will be announced when the Music deluxe card launched.



Thank you very much.

https://youtu.be/wzMZ9yTsEAo



'◆ SD Music card' 카테고리의 다른 글

SD MUSIC DELUXE INSTRUMENT UTILITY  (0) 2020.07.03
New firmware for SD Music(Plus) card  (0) 2020.04.28
VGM Play on SD MUSIC (Plus) card  (0) 2020.04.10
New firmware for SD Music(Plus) card  (0) 2020.04.07
How to reduce noise on SD Music +  (0) 2020.02.16
Posted by 이안김
, |

Hi customers and friends,



I'm glad to notice that I've made a VGM Player for SD MUSIC card.

Here is the sample play on SD Music card.

https://youtu.be/s-QGBZC4Sbo

Recorded songs are mostly Korean songs.

All VGM files extracted(Not by me) from Family Karaoke on Famicom system.



This VGM player used a bare control mode on SD Music card on new firmware V2.0.

It has 32KB file limit so need to manual load for next data hence, I'm considering using AUX memory or file reading way(It may have a delay while file reading).

Anyway, we have another program to play music on SD Music card.



Thanks a lot

Ian Kim



'◆ SD Music card' 카테고리의 다른 글

New firmware for SD Music(Plus) card  (0) 2020.04.28
VGM Player V1.21  (0) 2020.04.26
New firmware for SD Music(Plus) card  (0) 2020.04.07
How to reduce noise on SD Music +  (0) 2020.02.16
SD Music+  (0) 2018.01.17
Posted by 이안김
, |

Dear customers and friends,



I'm glad to announce for new firmware upgraded to Version 2.0.

In this version, I've applied all of Envelope functions and now it works very nice.

And on the Instruments Key On timing was improved a lot so, it could play much better.

Please have time to listen to it.





This song recorded from (Not so) Cheap Tunes I

and all instruments are default(Reed instruments).

(Recording was good so some parts had a clipping, it is not sound card issue but my PC )

https://youtu.be/4IKtQfxtfcg

Here is another song from Ultima IV

All instrument selected (Keyboard type Instruments)

(Recording was good so some parts had a clipping it is not sound card issue but my PC)



https://youtu.be/Rz3MPOaVjJg



I'm doing to make a user firmware updates utility and Instrument changing utility on APPLE ][.

After finishing it, I will announce it.



Thanks for your waiting and Keep good your health.

Regards;

Ian Kim

'◆ SD Music card' 카테고리의 다른 글

VGM Player V1.21  (0) 2020.04.26
VGM Play on SD MUSIC (Plus) card  (0) 2020.04.10
How to reduce noise on SD Music +  (0) 2020.02.16
SD Music+  (0) 2018.01.17
SD Music Plus  (0) 2017.11.29
Posted by 이안김
, |

Dear Customers,



SD Music+ having some noise and here is a way to reduce noise.

The noise is coming from power source and YM2413.

This is a type of filter on output and input.

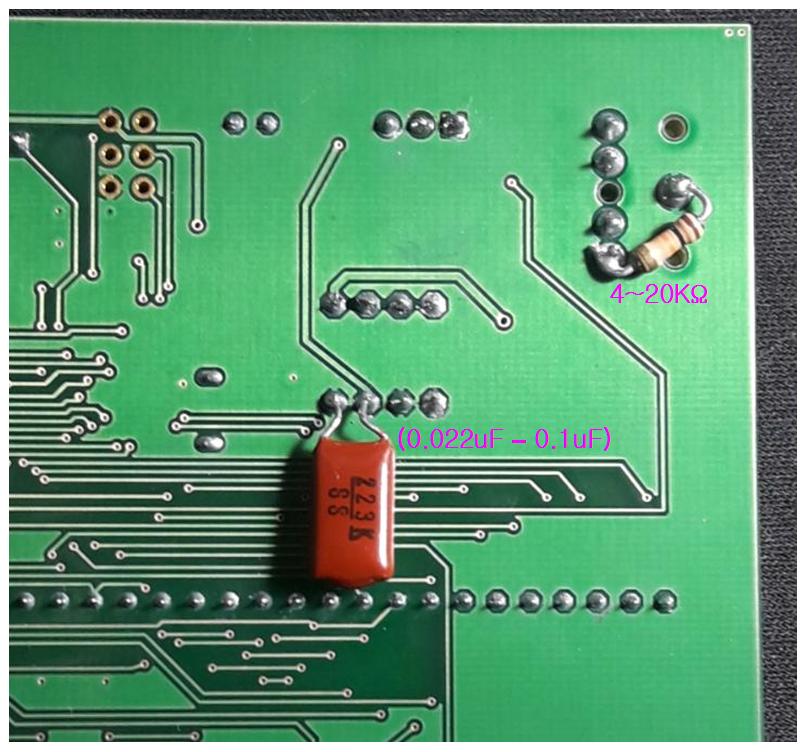

Please refer to the photo and apply two components.

One is 10K Ohms resistor and the other is a 0.022uF(223) capacitor.

(Similar value capacitor and resistor also work for this purpose)

It would help to reduce noise on sound.

Thanks a lot.











'◆ SD Music card' 카테고리의 다른 글

VGM Play on SD MUSIC (Plus) card  (0) 2020.04.10
New firmware for SD Music(Plus) card  (0) 2020.04.07
SD Music+  (0) 2018.01.17
SD Music Plus  (0) 2017.11.29
SD Music card compatibility issue  (0) 2017.07.20
Posted by 이안김
, |

SD Music+

◆ SD Music card / 2018. 1. 17. 18:35

Dear friends,


SD Music Plus card is completed.



Functions;


SD Music card is mocking board channel emulation and assigned to FM music instruments.

This version is upgrade version of SD Music card and mixing APPLE 2 speaker sound(No wire required)

Compatible;

APPLE ][ , ][+

APPLE //e

APPLE IIgs need music patch; for Ultima5, You need mockingboard patched version.


English Manual;

SD Music Plus user’s manual(ENG).pdf


Music instrument change utility


Please wait for manual and sale on eBay.

Thank you very much;

Ian Kim


'◆ SD Music card' 카테고리의 다른 글

New firmware for SD Music(Plus) card  (0) 2020.04.07
How to reduce noise on SD Music +  (0) 2020.02.16
SD Music Plus  (0) 2017.11.29
SD Music card compatibility issue  (0) 2017.07.20
Mockingboard on CPU Socket  (0) 2016.09.10
Posted by 이안김
, |

SD Music Plus

◆ SD Music card / 2017. 11. 29. 23:52

Hi, Friends,


If you don't know what is the SD Music card,

Please watch this video and compare Mockingboard with this FM sound quality.


Another version of SD Music card is testing now.


From this version, It works perfect with APPLE ][+.

Previous version had some timing issue on APPLE ][+ so, some APPLE ][+ clone works so, I recommended APPLE //e.

APPLE ][+ and APPLE //e doesn't have same on expansion slot.

To discover it, I used a CPLD and now works perfect APPLE ][+ and //e. ( IIgs technical issue is the same as mocking board)

This new version have same sound character but, it has nice function.

I will introduce it again.

Please wait for the SD Music card again and enjoy nice music programing even on APPLE ][+.


Thank you.

Ian Kim


'◆ SD Music card' 카테고리의 다른 글

How to reduce noise on SD Music +  (0) 2020.02.16
SD Music+  (0) 2018.01.17
SD Music card compatibility issue  (0) 2017.07.20
Mockingboard on CPU Socket  (0) 2016.09.10
For new version of Slot type SD Music card  (0) 2016.01.04
Posted by 이안김
, |

Dear friends,


I developed the SD Music card to enhance old mockingboard of APPLE II.

In fact, I love this approach and sound quality.

In that version,

I replaced all electrolytic capacitors to tantalum capacitors for better sound quality and life.

And used RC filter on output AMP and some more improved.


But, It has compatibility issue following part's LOT#. It means that some chips works on some model with some software running.

In fact, After made this board, I've tested it on my APPLE //e and ][+ with SKYFOX and Ultima 4,5 before to ship. All fine then I sent it.

It works fine on APPLE //e even IIGS with Mockingboard patch.

But, I found it didn't work some software and some of APPLE ][+ model.


I really having hard time to find this cause...

It is happen because of the 6522 timing doesn't match well on APPLE II with 6502 CPU.

With some more research, I could find good way to overcome this issue and quickly applied on new PCB for SD Music card.

Sample card ordered and waiting for this.

On the CPLD testing, It works perfect on my APPLE //e and ][+ with all softwares.

and will test some of APPLE ][+ clones..

Please wait for some weeks for new board.

I will post when I have new board with testing results.


** NOTICE **

If you are not happy with your old version of SD Music card due to compatible issue, I will replace your card to new one.

Please ask me the address and send your card with sure way.

When I received it, I will send new board for you.


* I will test all arrived board,

it if it failed to work with some another reason, It will be charged some costs,

Good working conditioned board will be replaced without return shipping charge.


Thank you very much;

Ian Kim


'◆ SD Music card' 카테고리의 다른 글

SD Music+  (0) 2018.01.17
SD Music Plus  (0) 2017.11.29
Mockingboard on CPU Socket  (0) 2016.09.10
For new version of Slot type SD Music card  (0) 2016.01.04
APPLE IIc Mocking board  (0) 2015.12.31
Posted by 이안김
, |

Hi friends,


Today, I've tested Mockingboard 4c(socket type) on APPLE //e.

To do it, I removed 65C02 CPU and pull flat cable to the Mockingboard 4c.

It was little complicated and I had to use Proto type not selling one.

Anyway, I could hear sound of mockingboard as it is on Slot#4.


This purpose is for the testing for APPLE //c plus and Laser128 system which couldn't have Mockingboard on Slot#4.

Those type of APPLE II can't use Mockingboard 4c but some of fans, wants to use it on their //c plus and Laser128.

Due to some of internal structure are not the same as APPLE //c, I couldn't say would work on there.

and I have to test it on //c and Laser128.

Now, I'm sure my design worked on just APPLE //e. :)


'◆ SD Music card' 카테고리의 다른 글

SD Music Plus  (0) 2017.11.29
SD Music card compatibility issue  (0) 2017.07.20
For new version of Slot type SD Music card  (0) 2016.01.04
APPLE IIc Mocking board  (0) 2015.12.31
New devices for APPLE IIc  (0) 2015.12.21
Posted by 이안김
, |

Dear all,


Thanks for purchasing the SD Music card.

Due to the good approach for new Yamaha sound chip,

I made plan to enhance the SD Music card for better capability.


Now, I'm testing new SD Music card (Maybe Deluxe version).


It have a YMF262 OPL3 chip for sound generation.

It have good capabilities for Music and can have much more Music instruments.

It is generating Stereo sound with clean sound.


This YMF262 was used for some version of Sound Blaster for IBM PC.







YMF262 have below capabilities,


https://en.wikipedia.org/wiki/Yamaha_YMF262

  • 18 2-operator channels
  • 15 2-operator channels + 5 drum channels (drum setting on)
  • 6 2-operator channels + 6 4-operator channels (4-op setting on)
  • 3 2-operator channels + 6 4-operator channels + 5 drum channels (both settings on)


It have maximum 18 channels, hence, it could more than Mocking board channels so, I want use the rest channels for music, and now looking for schematic of Phasor, I need IO address information how does it connected or control by APPLE II.

If some one know about the IO map or related information, Please let me know.


Anyway, I'm trying to understand all parts of YMF262 for similar emulation for mocking board and Phasor compatible card.


Keep watch it. ^^;

Thank you

Ian Kim

'◆ SD Music card' 카테고리의 다른 글

SD Music card compatibility issue  (0) 2017.07.20
Mockingboard on CPU Socket  (0) 2016.09.10
APPLE IIc Mocking board  (0) 2015.12.31
New devices for APPLE IIc  (0) 2015.12.21
Music instrument configuration utility for SD Music card  (0) 2015.08.18
Posted by 이안김
, |

I built mocking board compatible sound card for APPLE IIc.

As we know, the APPLE IIc doesn't have any slot and can't use any peripherals.

Unlike APPLE ][, ][+, //e or IIgs.

Due to this big handicaps, Many of fans not like to play with APPLE IIc.

But, now, we can have good sound on our APPLE IIc.

It have a mocking board (Sound card) in it.

Who likes to play APPLE IIc? not only me but, may be you too.


On the video, I used the Smart Drive for APPLE IIc. it will power ON boot by Ultima5.

You also can see it supports internal INUSE light.


Have time to watch this link.

https://youtu.be/AO4v-F516tI


Due to APPLE IIc doesn't have slot.

I made all of required signal from CPU socket and some of tricks to make vacant for mocking board slot.

It works but there was a conflict between Mouse firmware and Mocking board.

It designed it to avoid the conflict and then finally working as expected.

I will integrate a AMP chip for speaker driving and Sound pins for external speaker.

I'm designing PCB for it and other components will be prepared soon.


You can have mocking board on your APPLE IIc and can enjoy games with Mocking board support.

It would be a lovely and compact, portable vintage APPLE IIc for you.

Please wait for this new sound card to be completed for sale.


Thanks and Regards;

Ian Kim



Posted by 이안김
, |

최근에 달린 댓글

최근에 받은 트랙백

글 보관함
