Dear Friends and Customers,


A2Z80PLUS card is a 16MHZ Z80 card, but when using CP/M with a diskette, It looks no better advantage,

(Actually, in the past, there was already has a way to drive by HDD but, I can't make it run to loss of files and data)


For A2Z80PLUS, please see the posts in the link below.

https://quick09.tistory.com/search/a2z80





However, the value of luxury goods is revealed in the end...


The drive of HDD was restored properly by the following as link.

https://planemo.org/2020/06/18/bootable-cp-m-system-on-the-cffa3000-compact-flash-hd-for-the-apple-ii/?fbclid=IwAR2Pt4k9KS9at_sUYnmBhHIzW3EbO_1mMbqUvCNFxTAEM_oDax1md-31cg


So, I experimented/tested right away.


Insert A2Z80PLUS into slot 1,

After installing SD DISK II PLUS in slot 7, select the corresponding CP/M image and boot

First, PRODOS comes up.

To start CP/M operation


-PCPIBOOT (return)


After a while, the number selection appears. At this time, if you press '2'...


CP/M appears.


Drive is

A: B: C: D: Four are caught.

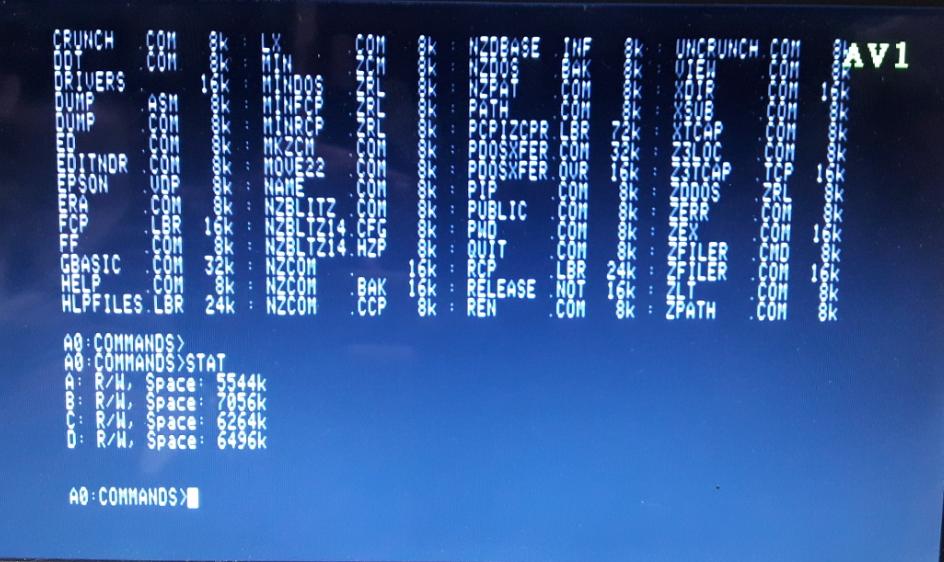

Since the FREE capacity is checked, it has enough free space as shown below.

Additionally, A clock has a driver but, I haven't been able to determine what kind it is.


From now, we can use CP/M with big spaces.


Enjoy it.



32MB PO images are here.

nzcm32mb.zip
2.80MB



zcpr32mb.zip
1.78MB
