Dear friends,

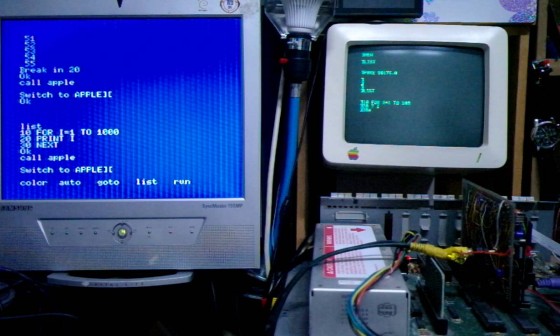

I put two movies which are showing the MSX card running on APPLE IIe.

First movie is showing the switching between APPLE to MSX by command and even running together.

This mode provide data interchange between APPLE to MSX card.

It is shareing the SLOT0 of MSX memory with APPLE IIe main memory.


And MSX card can access even APPLE II device.

On the beginning movie, You may find It is using HDD for program loading on MSX card.


It can R/W access on the SD DISK][ Emulator card (HDD mode).

When MSX card access APPLE II memory, The APPLE Speed lower to avoid memory access conflict and

about 1/3 Mhz is the running speed of APPLE IIe in that time.


MSX card works around 2Mhz for synconise with the APPLE II BUS.

Anyway watch it.


https://youtu.be/K38V7dlzVFg



This mode is showing the game running on MSX card and APPLE IIe .

It provide full speed each other but cant access APPLE II device from MSX card.


MSX card 3.58Mhz, APPLE IIe 1.023Mhz.


ttps://youtu.be/qz1RTVsYTbI
