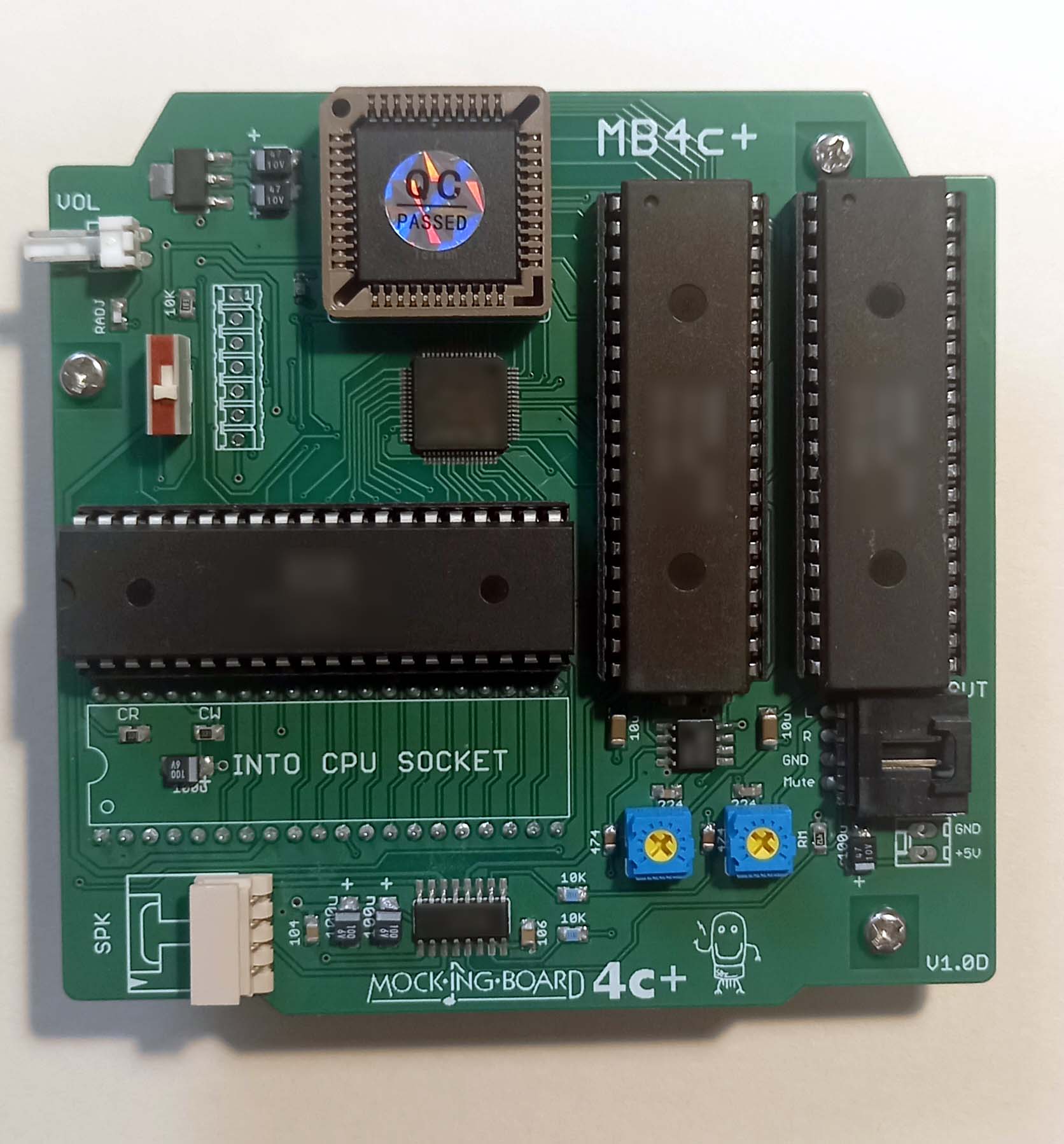

MB4C+ revised

MB4C+ revised and enhanced for..



Now user can select SLOT#4 or SLOT#5

It isn't needed but some of user suggested and applied.

If S/W is upper ; SLOT#4

If S/W is down ; SLOT#5



'Reset' hides the mocking board

When the user pressed 'Reset' and tried to reboot, it stopped on $c400 cause there was ROM code missing cause MB4C occupied there and needed to power OFF/ON or '$C600G'

Now it automatically returns and no more brake stops.

It wasn't a bug, the music construct set requested user to press 'RESET' to stop playing music.. so I couldn't remove MB4c from the SLOT.

but, I gave it up... and now we don't have to bother the brake while restarting.



Internally patched for the Prince of Persia.



I got a report that he couldn't run The Prince of Persia

I didn't believe before to test it but, I tested it and found he is correct.

It has a very strange hang while loading and doesn't start...

it made me research some more and now I can make it work with it.

I will consider the software cause it looks like a kind of bug.

And I will modify the position of screw holes for IIc 4000 after that we could have only one version of MB4C+ for all of APPLE IIc(+) computers.



Thanks, friends and customers..

Have a good day

Ian Kim
