Z80 card runs MSX Game
It start to run MSX Game as the attachment.
Having trouble to watch the video?
Please try here.
Left monitor is for MSX system, Right one is for APPLE IIe.
Now It need two monitors but, I will combine the Video signal hence only need one monitor.
I used SD DISK HDD mode to load MSX BIOS and GAME ROM data into the Z80 Board.
And easy to load ROMBIOS of MSX and Image file of GAME ROM.
The Z80 board have 512KB Internal RAM and Main BIOS RAM area shared with APPLE II main memory.
Other Memory area can remap to 1000H-4FFFH for APPLE II access.
So the results bring easy handling by APPLE II.
It also act as the Softcard. (The Last movie parts) and working properly.

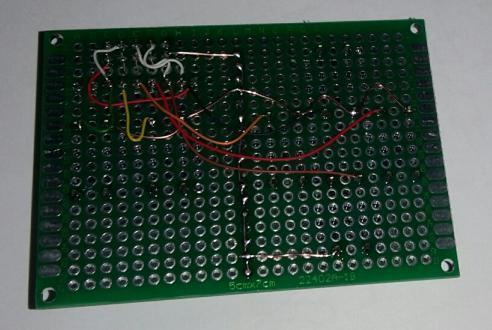

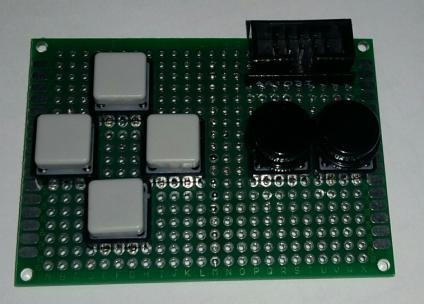

This is a Joypad for MSX Game.
But, I'm considering if it possible to use APPLE II keyboard to Joypad emulation.
Anyway, I will keep going to complete it for me.
Thank you very much.
Ian Kim
